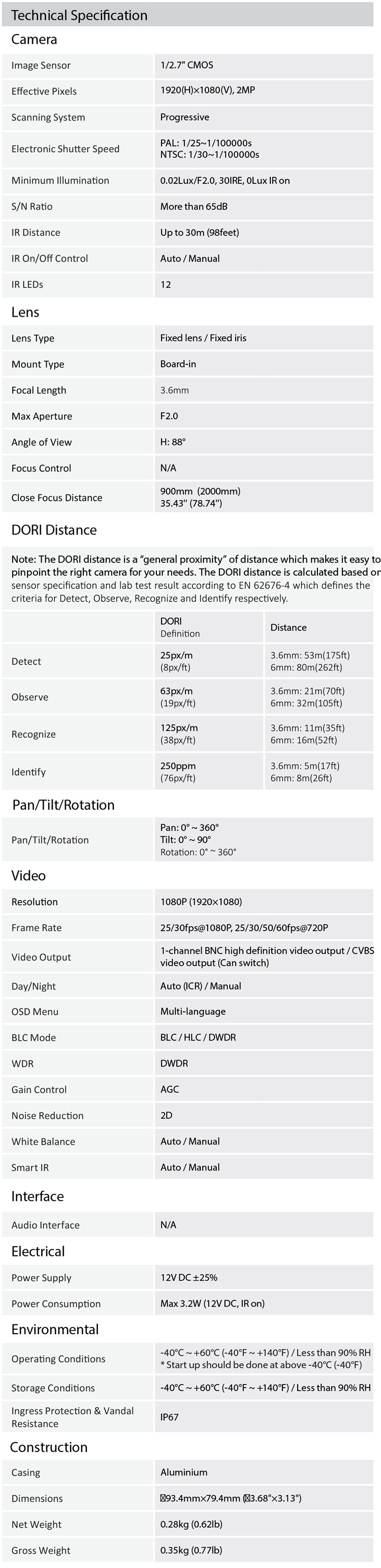

Technical Specification Camera KBVISION
Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)x1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25-1/100000s
NTSC: 1/30-1/100000s
Minimum Illumination 0.02Lux/F2.0,301RE, OLux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98feet)
IR On/Off Control Auto / Manual
IR LEDs 12
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm
Max Aperture F2.0
Angle of View H: 8W
Focus Control N/A
900mm (2000mm)
Close Focus Distance
35.43″ (78.741
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based or sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Distance
Definition
| Detect Observe RecognizeIdentify
Pan/Tilt/Rotation Pan/Tilt/Rotation Video |
25px/m 3.6mm: 53m(175ft)(8P./ft) 6mm: 80m(262ft)
63px/m 3.6mm: 21m(70ft) (19px/ft) 6mm: 32m(105ft) 125px/m 3.6mm: 11m(35ft) (38px/ft) 6mm: 16m(52ft) 250ppm 3.6mm: 5m(17ft) (76px/ft) 6mm: 8m(26ft) Pan: 0°- 360° Tilt: W – 9W Rotation: 0° – 360° |
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output /CVBS
video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto/Manual
Smart IR Auto / Manual
Interface
Audio Interface N/A
Electrical
Power Supply 12V DC ±25%
Power Consumption Max 3.2W (12V DC, IR on)
Environmental
Operating Conditions -40°C – +60°C (-40°F – +140°F) / Less than 90% RH
*Start up should be done at above -40°C (-40°F) Storage Conditions -40°C – +60°C (-40°F – +140°F) / Less than 90% RH
Ingress Protection & Vandal
IP67
Resistance
Construction
Casing Aluminium
Dimensions 093.4mmx79.4mm (03.68″x3.13″)
Net Weight 0.28kg (0.621b)
Gross Weight 0.35kg (0.771b)
